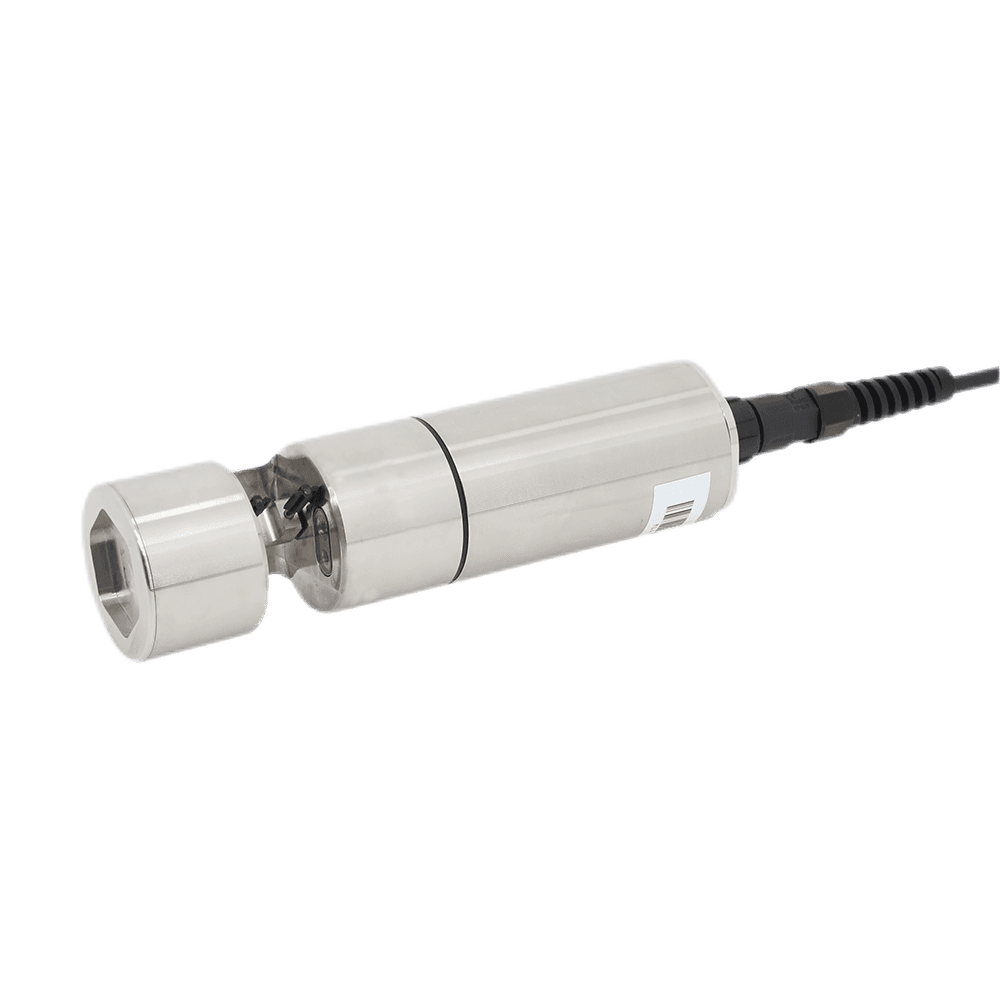

Y531-A Self-cleaning Color Sensor
SKU: WQ-02077
Available
Y531-A Self-cleaning Color Sensor. Key specifications: Model: Y531-A; Measuring Principle: Absorption method; Range: 0-500Hazen; Linearity: R2>0.999; Resolution: 0.01Hazen.
- Model
- Y531-A
- Measuring Principle
- Absorption method
- Range
- 0-500Hazen
- Linearity
- R2>0.999
- Resolution
- 0.01Hazen
- Temperature Range
- 0-50C
- Maximum Water Depth
- 30m
- IP Range
- IP68
- Interface
- RS-485, MODBUS protocol
- Power
- 0.1W (non wiping) 0.8W (wiping)
- Size
- Phi46mm*189.5mm
- Cable Length
- 10m (default), customizable
- Calibration
- 1-point or 2-point calibration
- Sensor Housing Material
- Ti
